check_tc4400

check script for Technicolor TC4400 cable modems

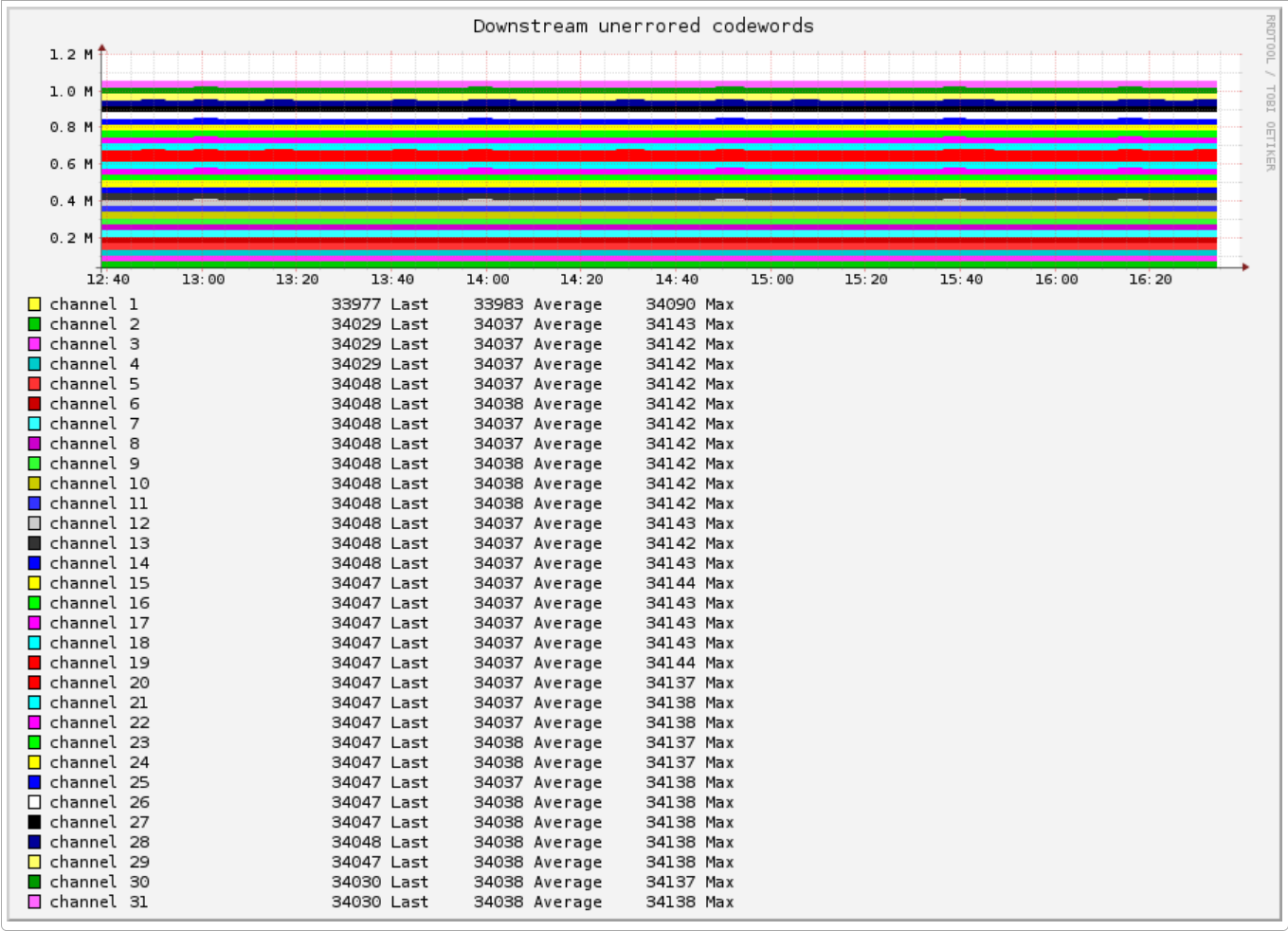

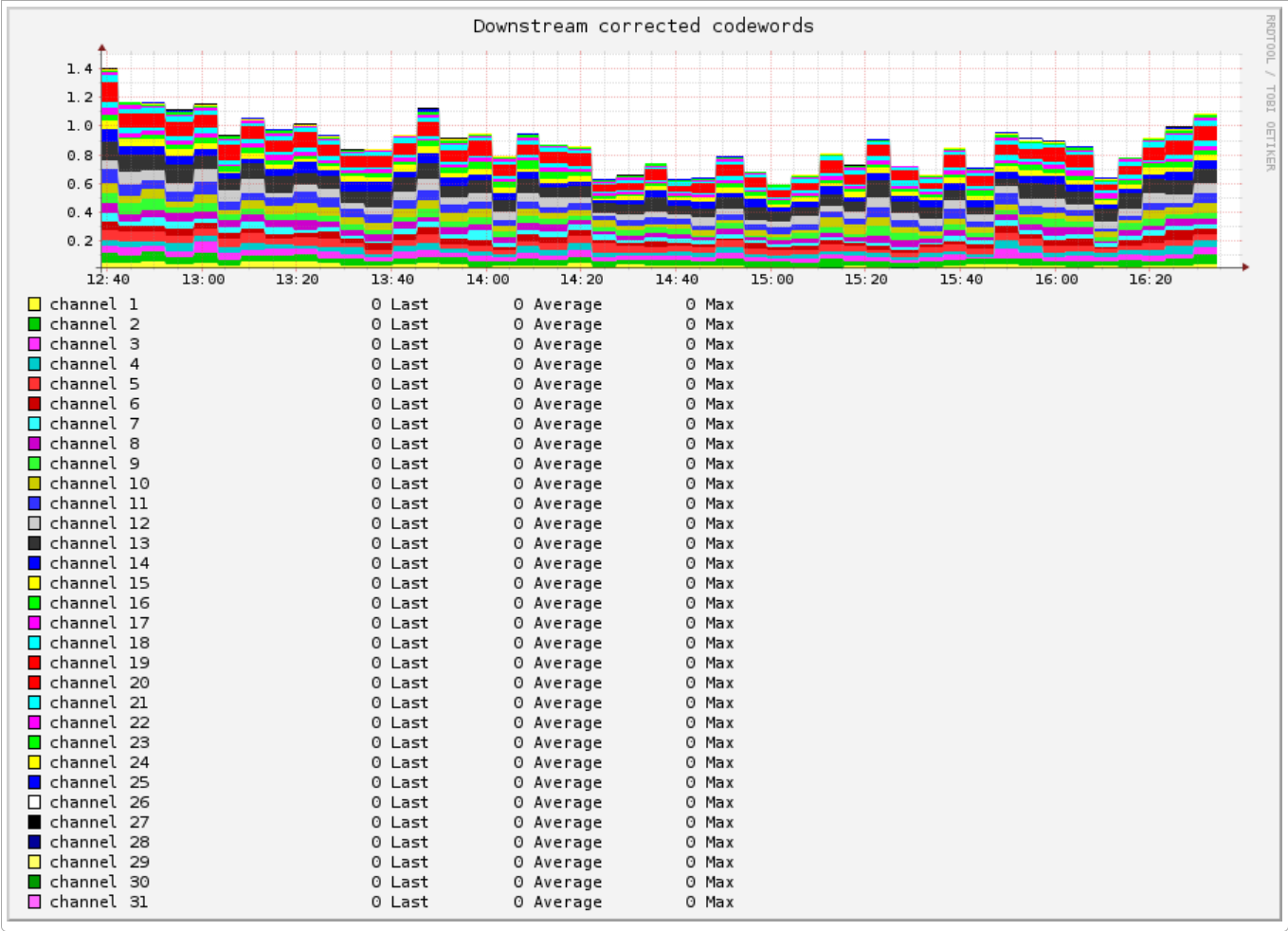

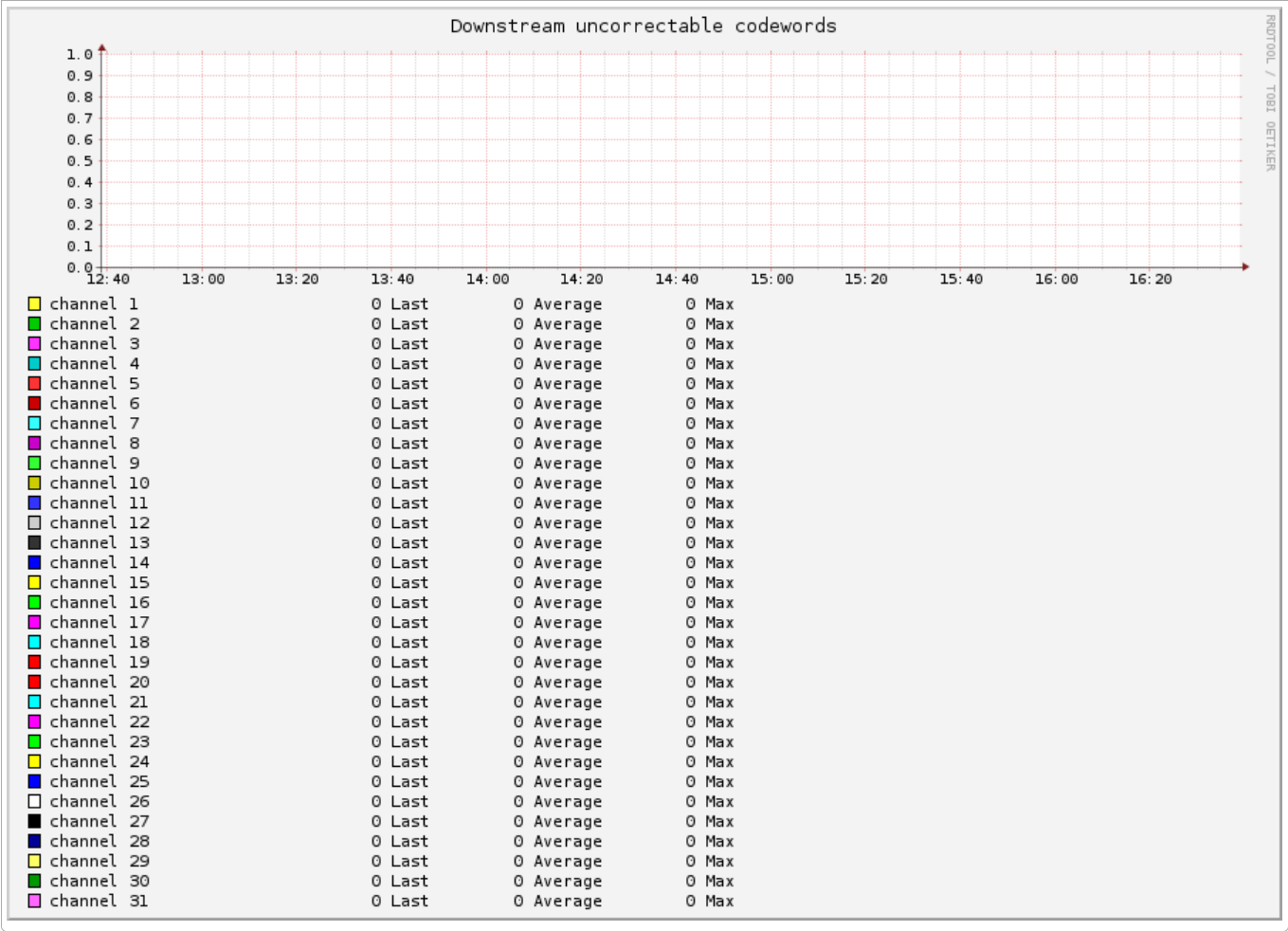

modem data ds cwcorr   modem data ds cwfail   modem data ds cwpass   modem data ds rlvl   modem data ds snr   modem data us tlvl

Download

Feedback

Documentation

NAME

check_tc4400

VERSION

0.1

SYNOPSIS

check_tc4400 -H HOST -u USER -p PASS

OPTIONS

  • H HOSTNAME

    Hostname or ip address of your tc4400 modem.

  • u username

    Username to authenticate with to the modem's webinterface.

  • p password

    Password to authenticate with to the modem's webinterface.

DESCRIPTION

This script connects to the TC4400 webinterface and parses the connection status page.

It warns or returns a critical state if:

* Connectivity State is not "OK"
* Boot State is not "OK"
* Configuration File is not "OK"
* Security is not "Enabled"
* downstream channel is not "Locked"

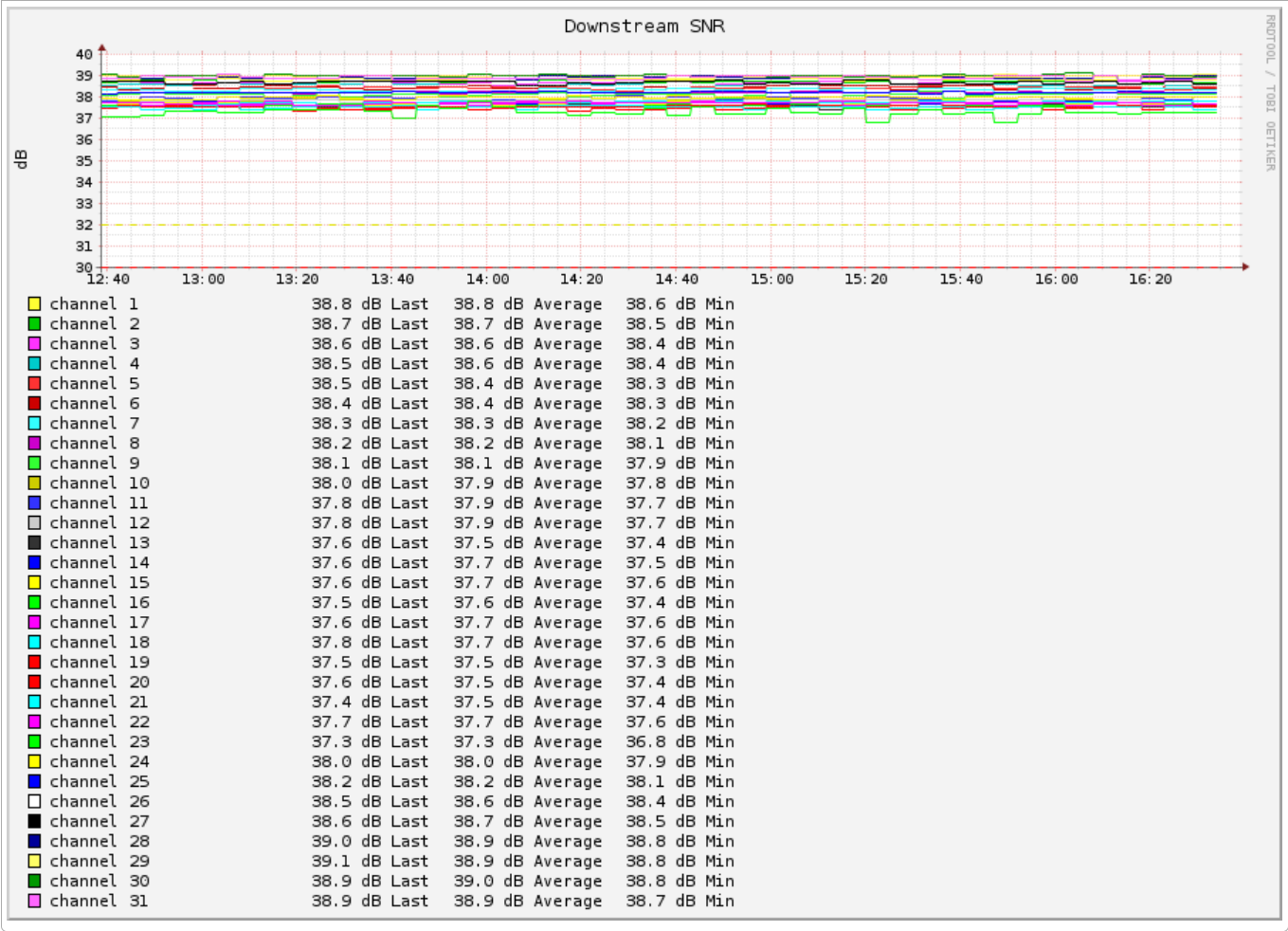

* downstream channel signal/noise ratio is below 32dB/30dB (QAM256)
* downstream channel signal/noise ratio is below 24dB/26dB (QAM64)

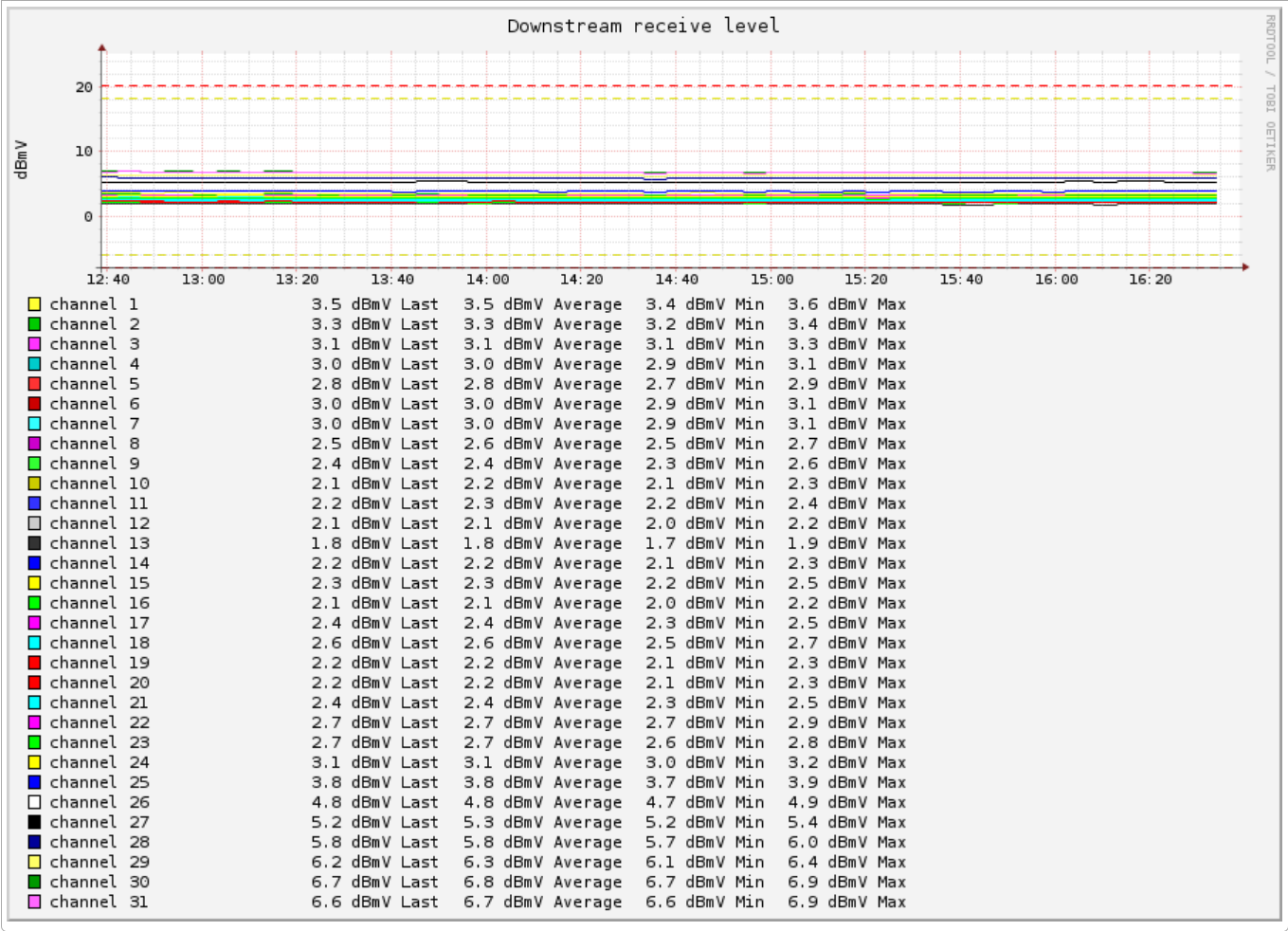

* downstream channel receive level is below -8dBmV/-6dBmV or above 18.1dBmV/20.1dBmV

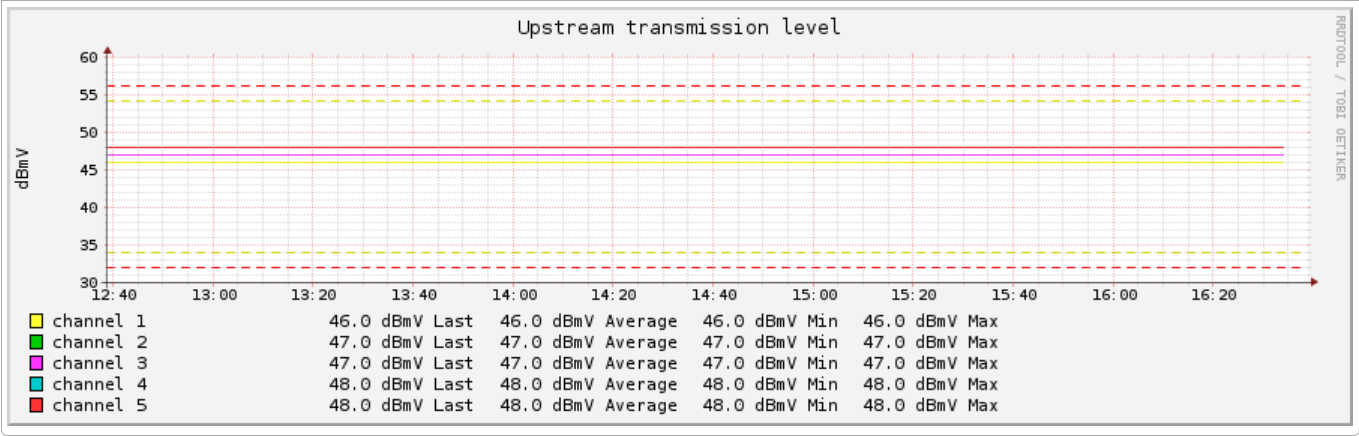

* upstream channel transmission level is below 32dBmV/34dBmV or above 54.1dBmV/56.1dBmV

DEPENDENCIES

  • LWP::UserAgent
  • HTML::TableExtract
  • Pod::Usage
  • Getopt::Long

AUTHOR

Philippe Kueck <projects at unixadm dot org>
